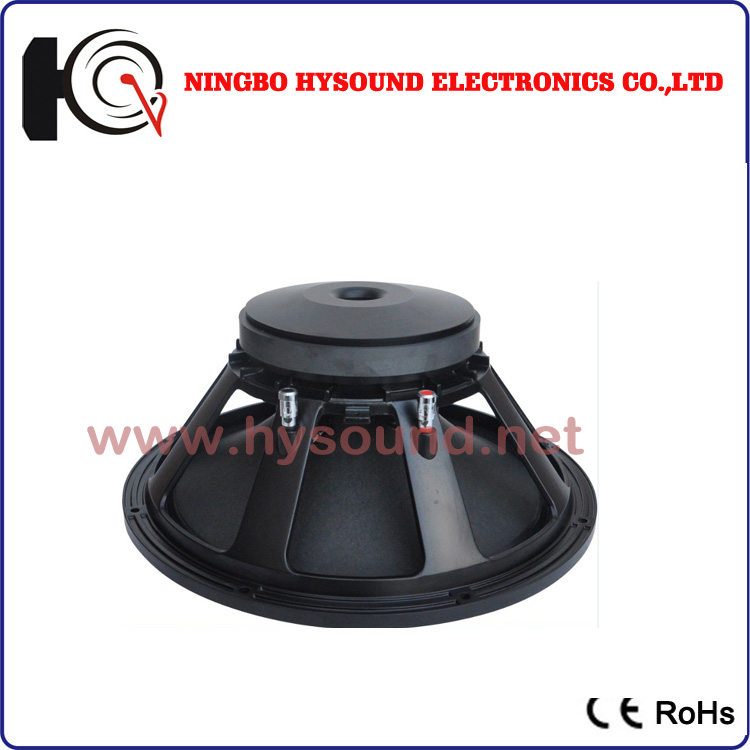

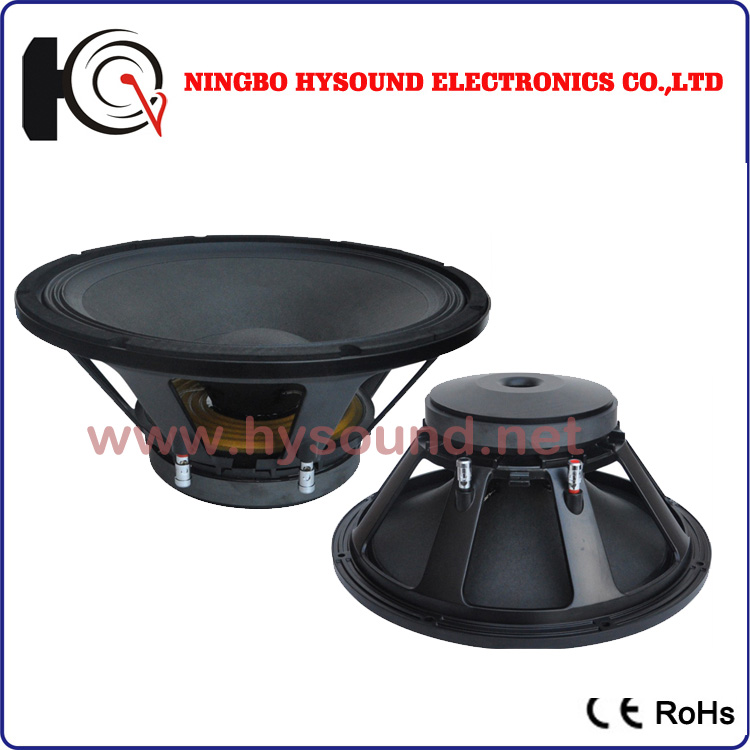

Model
|
HY1509
|
|
MECHANICAL SPECIFICATIONS
|
|
|
Overall diameter
|
mm
|
393
|
|
Bolt circle diameter
|
mm
|
371
|
|
Baffle cutout
diameter
|
mm
|
352
|
|
Depth
|
mm
|
158
|
|
Flange and Gasket
|
mm
|
12
|
|
Net weight
|
kg
|
7.1
|
|
Shipping box (single
carton box)
|
mm
|
430*430*200
|
|
ELECTRICAL
SPECIFICATIONS
|
|
|
Nominal
diameter
|
inch
|
15
|
|
Nominal impedance
|
Ω
|
8
|
|
DC resistance
|
Ω
|
6
|
|
Nominal power
handling (AES)
|
W
|
450
|
|
Program power handling
|
W
|
900
|
|
Sensitivity
(1W/1m)
|
±
2dB
|
96
|
|
Frequency range
(-10dB max)
|
Hz
|
35-4K
|
|
Voice coil diameter
|
mm
|
75, 3inch
|
|
Voice coil material
|
cu
|
AP
|
|
Former material
|
|
TIL
|
|
Winding depth
|
mm
|
16
|
|
Plate
|
mm
|
8
|
|
Magnet
|
oz
|
78
|
|
Basket
|
|
Aluminium
|
|
THIELE & SMALL PARAMETERS
|
|
|
Fo
|
|
|
Hz
|
39
|
|
Revc
|
Ω
|
6.3
|
|
Sd
|
M2
|
0.085
|
|
Vas
|
L
|
212
|
|
Cms
|
uM/N
|
192
|
|
Mms
|
g
|
84
|
|
Bl
|
Tm
|
16.5
|
|
Qms
|
|
10.6
|
|
Qes
|
|
0.48
|
|
Qts
|
|
0.46
|
|
Levc
|
mH
|
0.62
|
|
No
|
|
2.60%
|
