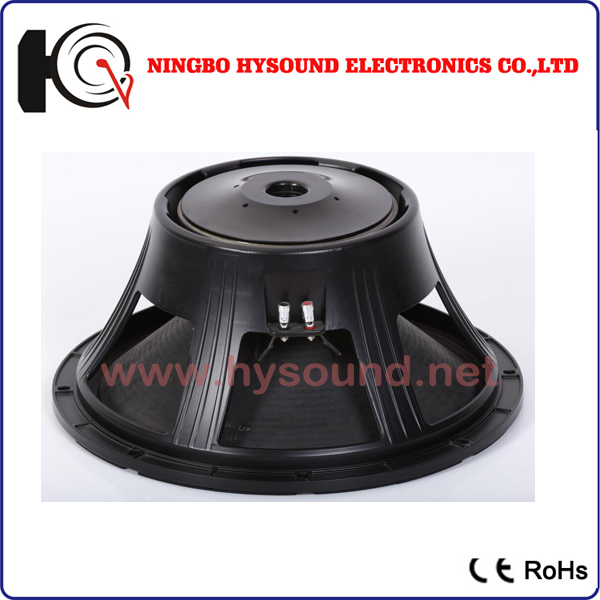

Model
|
PA15GTS600
|
PA18GST800
|
|
MECHANICAL
SPECIFICATIONS
|
|
|
|
Overall diameter
|
mm
|
392
|
477
|
|
Bolt circle diameter
|
mm
|
372
|
450
|
|
Baffle cutout
diameter
|
mm
|
353
|
426
|
|
Depth
|
mm
|
160
|
206
|
|
Flange and Gasket
|
mm
|
15
|
16
|
|
Net weight
|
kg
|
10
|
13
|
|
Shipping box (single
carton box)
|
mm
|
425*425*205
|
510*510*255
|
|
ELECTRICAL
SPECIFICATIONS
|
|
|
|
Nominal
diameter
|
inch
|
15
|
18
|
|
Nominal impedance
|
Ω
|
8
|
8
|
|
DC resistance
|
Ω
|
5.3
|
5.3
|
|
Nominal power
handling (AES)
|
W
|
600
|
800
|
|
Program power handling
|
W
|
1200
|
1600
|
|
Sensitivity
(1W/1m)
|
±
2dB
|
96
|
97
|
|
Frequency range
(-10dB max)
|
Hz
|
35-4.5K
|
35-4.5K
|
|
Voice coil diameter
|
mm
|
100, 4inch
|
100, 4inch
|
|
Voice coil material
|
cu
|
AP
|
AP
|
|
Former material
|
|
TIL
|
TIL
|
|
Winding depth
|
mm
|
22
|
22
|
|
Plate
|
mm
|
12
|
12
|
|
Magnet
|
oz
|
100
|
125
|
|
Basket
|
|
Aluminium
|
Aluminium
|
|
THIELE & SMALL PARAMETERS
|
|
|
|
Fo
|
|
|
Hz
|
52
|
34
|
|
Revc
|
Ω
|
5.2
|
5.4
|
|
Sd
|
M2
|
0.083
|
0.125
|
|
Vas
|
L
|
81.5
|
265
|
|
Cms
|
uM/N
|
83
|
118
|
|
Mms
|
g
|
109
|
187
|
|
Bl
|
Tm
|
19.8
|
24.6
|
|
Qms
|
|
9.9
|
9.3
|
|
Qes
|
|
0.49
|
0.35
|
|
Qts
|
|
0.47
|
0.34
|
|
Levc
|
mH
|
0.95
|
0.95
|
|
No
|
|
2.38%
|
2.80%
|
